The production line is applied to produce honeycomb paper core and honeycomb paper panel. The line is automatic from raw material roll to the finished honeycomb paper panel.
TECHNOLOGY:
| Raw material for core | 1600xφ1200mm |
| Applicable paper for core | 110-140gsm corrugated medium |
| Raw material for surface paper | 1300xφ1200mm |
| Applicable paper for lamination | 180-400gsm corrugated medium or Kraft paper |
| Width of continuous core | 1600mm |
| Width of finished panel | 1300mm |
| Thickness of core or panel | 8-70mm |
| Length of finished panel | 500-3000mm |
| Production speed | 0-15m/min |
| Heating type | Electrical heater,hot air circulation |
| Total length | 68m |

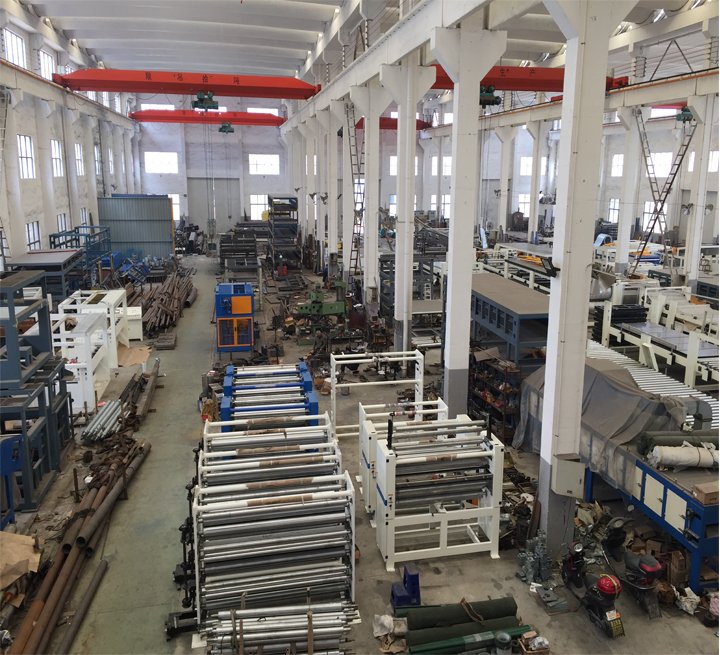

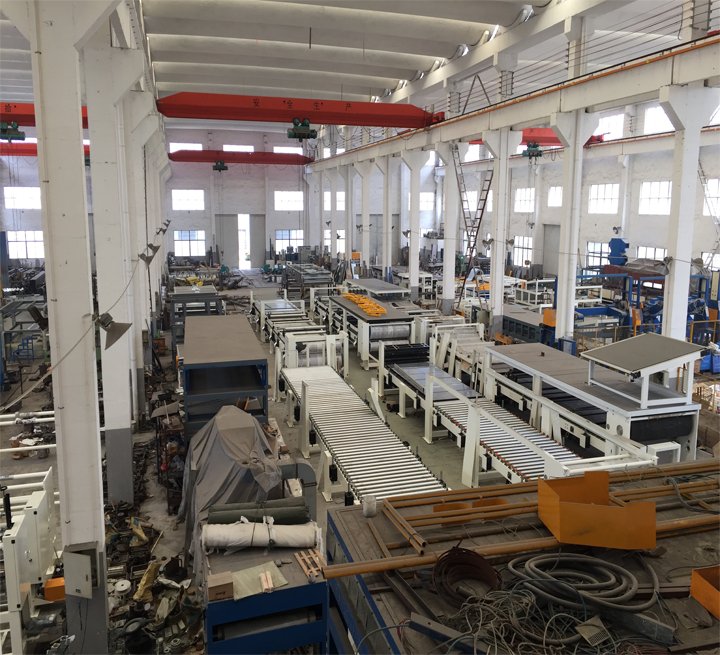

WORKSHOP:

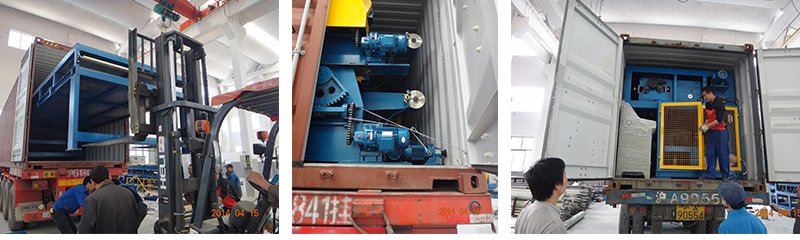

PACKAGING & SHIPPING:
●Packaging Details: Film+ honeycomb board packing.
●Delivery Detail: Shipped in 30 days after payment.
OUR SERVICES:
√ One year guarantee for whole machine, all life follow-up service.
√ 24 hours technical support by email.
√ Technicians oversea set-up and workers training.
√ Use- friendly English for operation system.
