Max. speed is 30m/min. SANPPL-120DL is for L profile paper edge protector production. Through changing tools, it can produce U profile protector and Flat board. SANPPL-120DLU or SANPPL-120DLF double purpose machine and SANPPL-120DLUF triple purpose machine can produce two and three types protector without changing tools.
TECHNOLOGY：
| Size of protector | 25-l00mm |
Max production speed | 30m/min |
| Max quantity of layer | 13 layer including 1 layer surface paper |
| Applicable surface paper | 175-250g craft paper |
| Applicable inner paper | 360g-600g Bobbin fiber paper. |
| Overall dimension | Highest point for added hoist is 2.9m |
| Total weight | 4.5T |
| Total power | 9.5kw |
| Compressed air supply | 0.6Mpa,0.2m3/min |
ADVANTAGES
Optimum protection
Alternative to expensive packaging materials
Saving in cost, time and materials
100% recyclable and environmentally friendly material
PROTECTOR SHAPE
L shape paper edge protector
U shape protector
Flat Shape protector
PROTECTOR SIZE
1) L shape protector
Leg length: 25-120mm. Leg size can be symmetrical and asymmetrical.
Thickness: normally 2.5mm to 6mm. For special order can be 8mm and 10mm.
B and C are for leg length. A is for protector length.

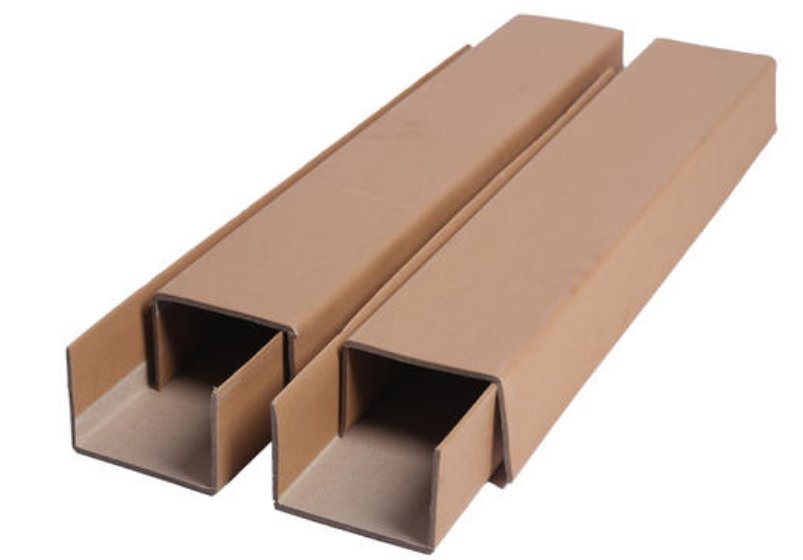

2) U shape protector
Leg length: 25-100mm.
Flat portion: 150mm,100mm,80mm,60mm.50mm,40mm,30mm,15mm. The most popular flat sizes are
40mm and 30mm. One mold can produce U protectors with one flat portion size.
Thickness: Most popular thickness is 3mm and 4mm. Thickness can be adjusted by same one mold.

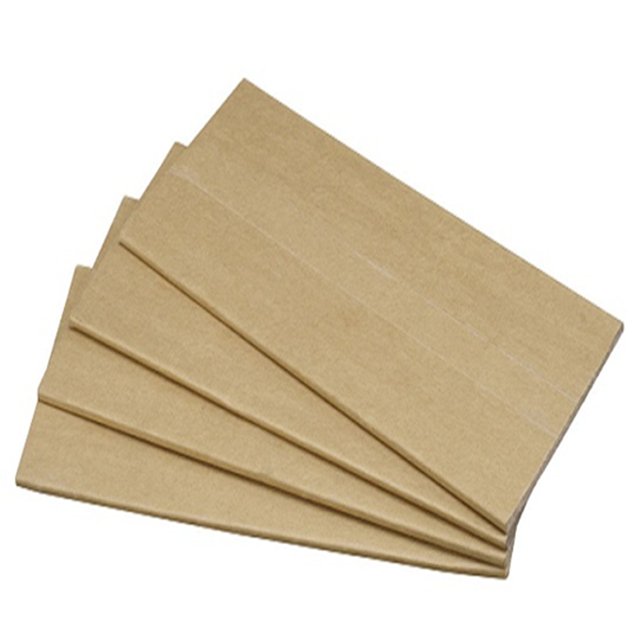

3) Flat Shape protector
Width: 50-200mm. Thickness: 2-7mm
Note: Protector size is from the outer size of L shape and U shape protector, not inner size.
COMPONENT OF THE MACHINE:
Paper stands
Gluing device
Composing device
Edge protector forming device
Edge protector cutting device
Edge protector stack
PACKAGING & SHIPPING:
●Packaging Details: Film+ honeycomb board packing.
●Delivery Detail: Shipped in 30 days after payment.
OUR SERVICES:
√ One year guarantee for whole machine, all life follow-up service.
√ 24 hours technical support by email.
√ Technicians oversea set-up and workers training.
√ Use- friendly English for operation system.
